BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas

SKU: BPIWIFI5LYQ2
  1. Dual-Band 1200Mbps Wi-Fi: Simultaneous 2.4G and 5G bands for fast, stable connections.
  2. Powerful Signal: Four high-gain antennas for strong penetration and wide coverage.
  3. OpenWRT Customization: Open-source system for extensive DIY and customization.
  4. Smart QoS Control: Intelligent traffic management for stable network experience.
  5. Compact & Easy Setup: Mini size with simple setup for home and small business use.
0.0 (0 Reviews)
$0.00 $118.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Power Standard:
    US/JP
    EU
    Please select the information you wantX
Quantity:
-
+
  • BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas
  • BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas
  • BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas
  • BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas
  • BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas
  • BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas
  • BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas
  • BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas
  • BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas
  • BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas
1/1
  • BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas
  • BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas
  • BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas
  • BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas
  • BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Reviews

BPI-WIFI5 Router - 1200Mbps Dual-Band Router, OpenWRT, High-Gain Antennas


  • Quick Start: [BPI-WIFI5 Link]
  • Open Source:  https://github.com/BPI-SINOVOIP/BPI-WiFi5-Siflower
  • Tips


Introduction


The Banana Pi BPI-WiFi5 Router is a high-performance wireless router designed for small and micro businesses, homes, and other networking environments. It features a dual-band design with 2.4G 2T2R and 5.8G 2T2R, allowing for simultaneous operation and providing strong signal penetration and wider coverage. The router uses four omni-directional high-gain antennas, making the signal more powerful and data transmission smoother. It supports MU-MIMO multi-device transceiver technology, ensuring low latency and stable connections for multiple devices simultaneously.
The BPI-WiFi5 Router is equipped with the Siflower SF19A2890S2 chip solution, providing 1 gigabit WAN port and 3 gigabit LAN ports, supporting 2.4G and 5G with a wireless transmission rate of 1200Mbps. It also supports rich software features, making it an ideal high-performance product for small and micro businesses and families.


Features


  • High-performance wireless router with 1.2Gbps wireless rate and full gigabit ports
  • Supports IEEE802.11a/b/g/n/ac
  • Equipped with 23.5dBi@4G and 25dBi@5G external omni-directional high-gain antennas
  • Uses an external independent FEM to increase the wireless coverage of 5.8G
  • Mini size and lightweight design
  • Supports EasyMesh R2 and TR069 operator docking
  • Provides industrial low latency and high reliability Wi-Fi communication方案
  • Supports WAPI (SM4) encryption
  • Production-level system support for direct productization
  • Intelligent QoS policy and MAC-based network traffic rate limiting mechanism
  • Comprehensive system monitoring and security logs
  • OpenWRT support for open source and free DIY


Shipping List


1x Router
1x RJ45 Gigabit Ethernet cable
1x Power

Specification


Parameter Information
CPU Siflower SF19A2890S2 MIPS dual core 1.2GHz
Switch AN8855R Gigabit switch chip
RAM 64MB DDR2 RAM
Flash 8MB

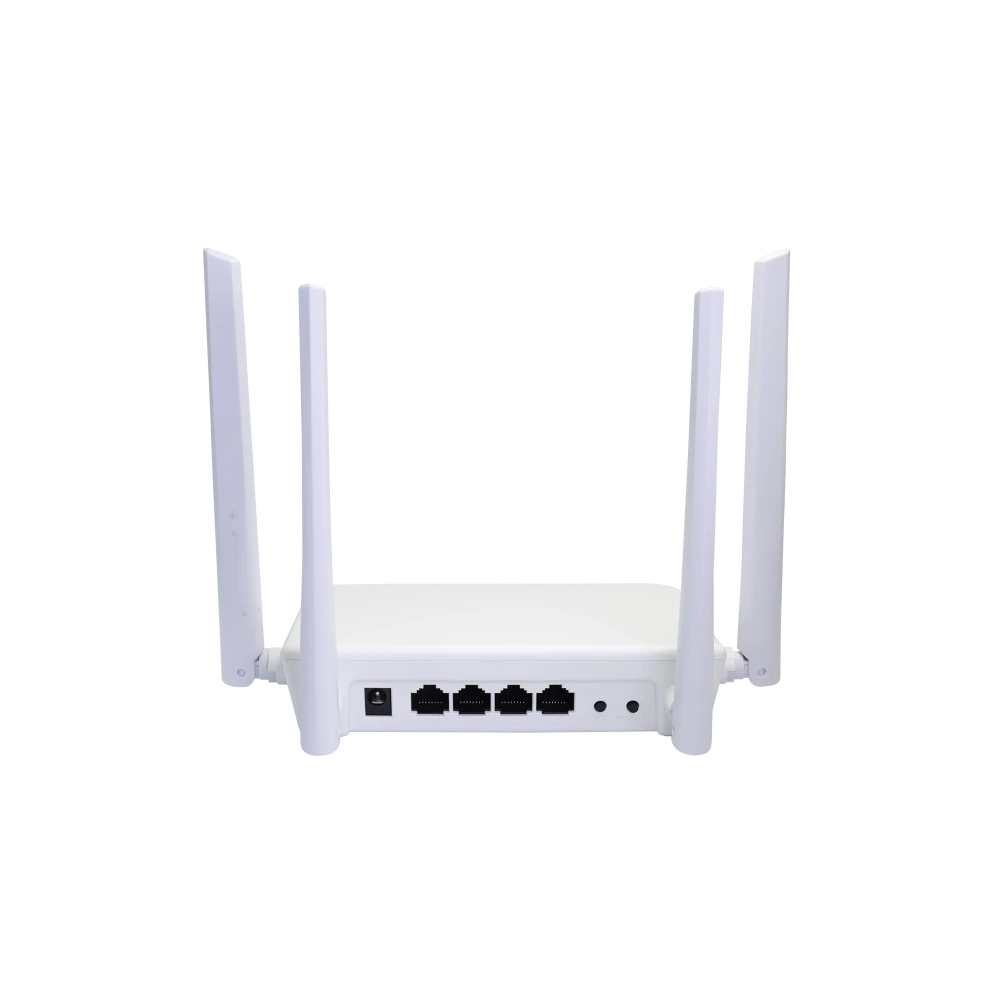

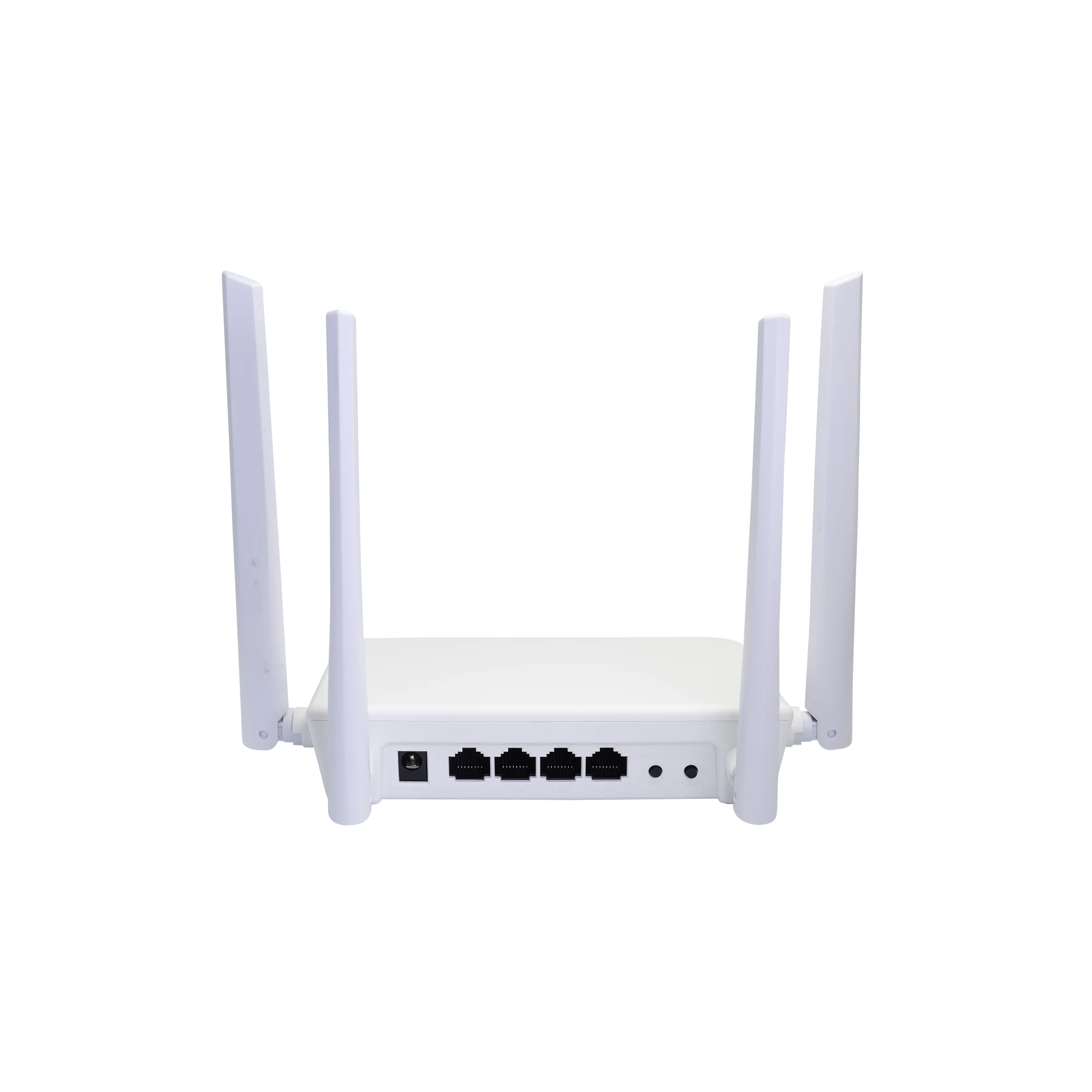

Interface 1*10/100/1000Mbps adaptive WAN interface, 3*10/100/1000Mbps adaptive LAN interface, 1* DC 12V/1A Power Port, 1*Reset/WPS key
Wireless speed 2.4G WiFi: 2*2 (300Mbps), 5G WiFi: 2*2 (866.7Mbps)
Wireless frequency 2.4G: 2.4GHz~2.4835GHz, 5G: 5.150GHz~5.85GHz
Antenna External 2*3.5dBi @ 4G, 2*5dBi @ 5G omni-directional high-gain antenna
Power DC 12V/1A
Size 97mm x 65mm
WAN port settings Automatically obtain IP address, Fixed IP address, PPPoE dial-up
LAN port settings Automatically set LAN port address, Manually set LAN port address
MAC address settings Use router MAC address, MAC address cloning, Customize MAC address
DHCP server Modify address pool start address, Modify address pool end address, Modify address lease, IP and MAC binding settings
IPV6 Turn on/off IPV6, WAN settings, LAN settings
WiFi Wi-Fi SSID and password settings, Wireless broadcast, Encryption, Channel bandwidth settings, Switch mode, Modify bandwidth, Modify signal strength
Guest network Guest network SSID, speed limit, access time, and whether to access the intranet
WDS Wireless Bridging WDS Wireless Bridging
Advanced features Virtual server, DMZ host, UPnP settings, Routing function, DDNS
System Settings System status, Time settings, Password management, Configuration management, System log, LAN settings, DHCP binding, Backup, Factory reset
