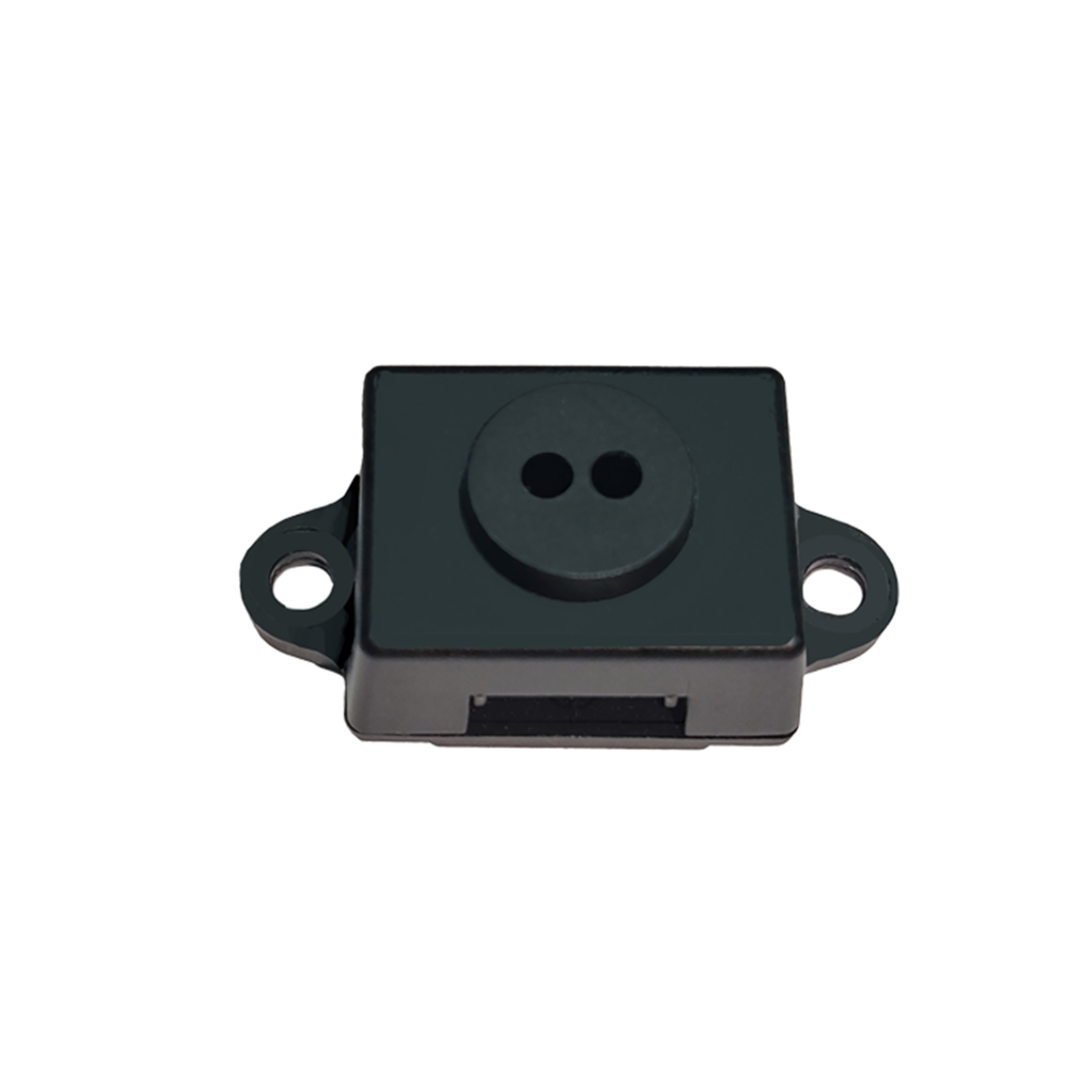

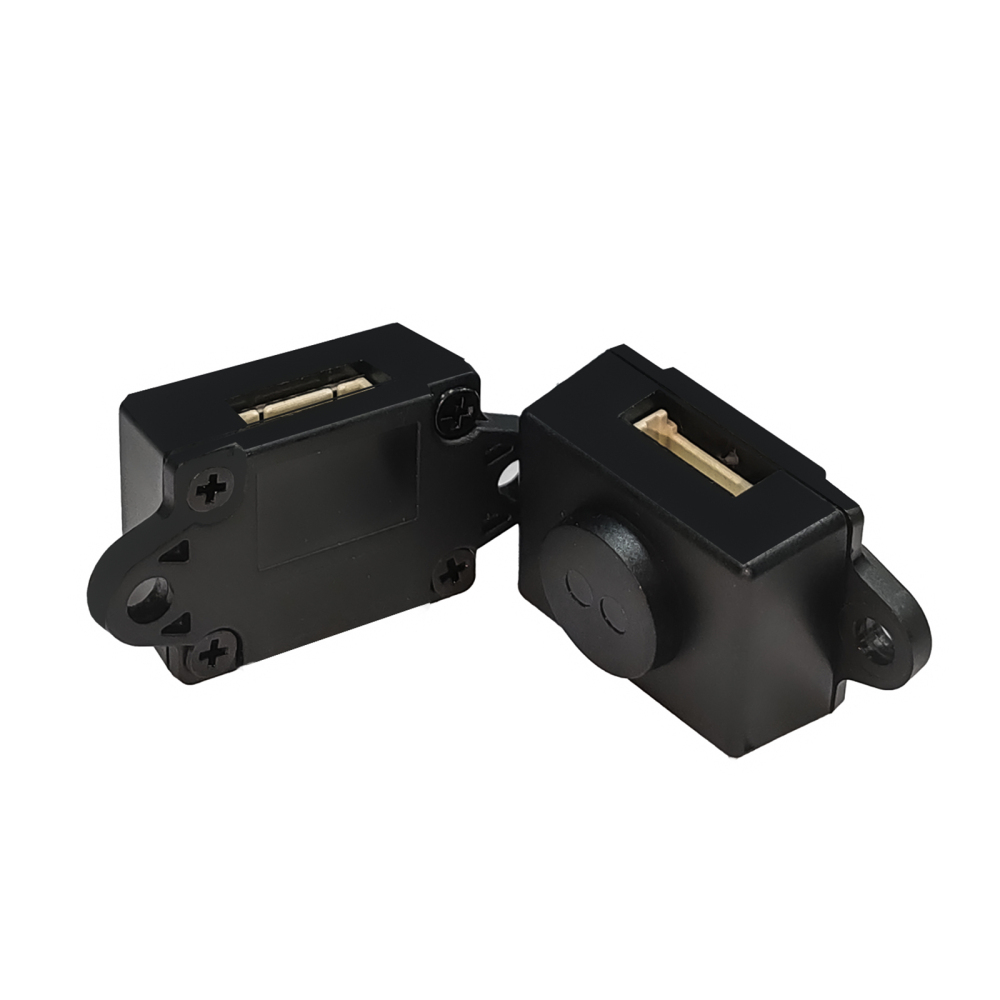

NURATEK MINIF TOF Lidar Ranging Module

• Quick Start
• Tips
  • MINIF has one more IR filter than MINIT.

Introduction

The MINIF Lidar distance measuring module is a high-performance and versatile distance measurement solution designed for industrial and commercial applications. Based on D-TOF single-point laser sensor technology and equipped with an onboard MCU and a customized housing, it delivers fast and precise distance measurement results. With its advanced optical collimation technology and intelligent algorithms, it can accurately measure small targets in strong ambient light conditions of 100-190KLux, and its measurement is not affected by the reflectivity differences of targets within the 2m-4m range.

Features

1. High Precision Measurement : Utilizing D-TOF technology, this MINIF laser distance measuring module achieves a measurement accuracy of ±3% within a distance range of 20mm-4000mm, enabling precise distance measurement for various applications.
2. Fast and Stable Performance : With a frame rate of 30Hz-90Hz, it responds swiftly and operates stably, providing real-time distance data to meet the fast-paced requirements of industrial automation and robotics.
3. Strong Anti-interference Ability : Equipped with built-in sunlight suppression and anti-dirty algorithms, it can accurately measure distances even in strong ambient light of up to 190KLux, ensuring reliable performance in complex environments.
4. Low Power Consumption : Operating at a power voltage of 3.3V and consuming less than 35mA of current, it is energy-efficient and suitable for battery-powered devices and long-term monitoring applications.
5. Compact and Lightweight Design : With dimensions of 21.00mm × 16.5mm × 13.50mm and a weight of approximately 3.6g, it is easy to install and integrate into various devices and systems, making it ideal for space-constrained applications.
6. Versatile Applications : Perfect for existence detection, auxiliary focusing, height detection, workstation detection, robot obstacle avoidance, and assembly line counting, it provides efficient and accurate distance measurement solutions for different industrial scenarios.

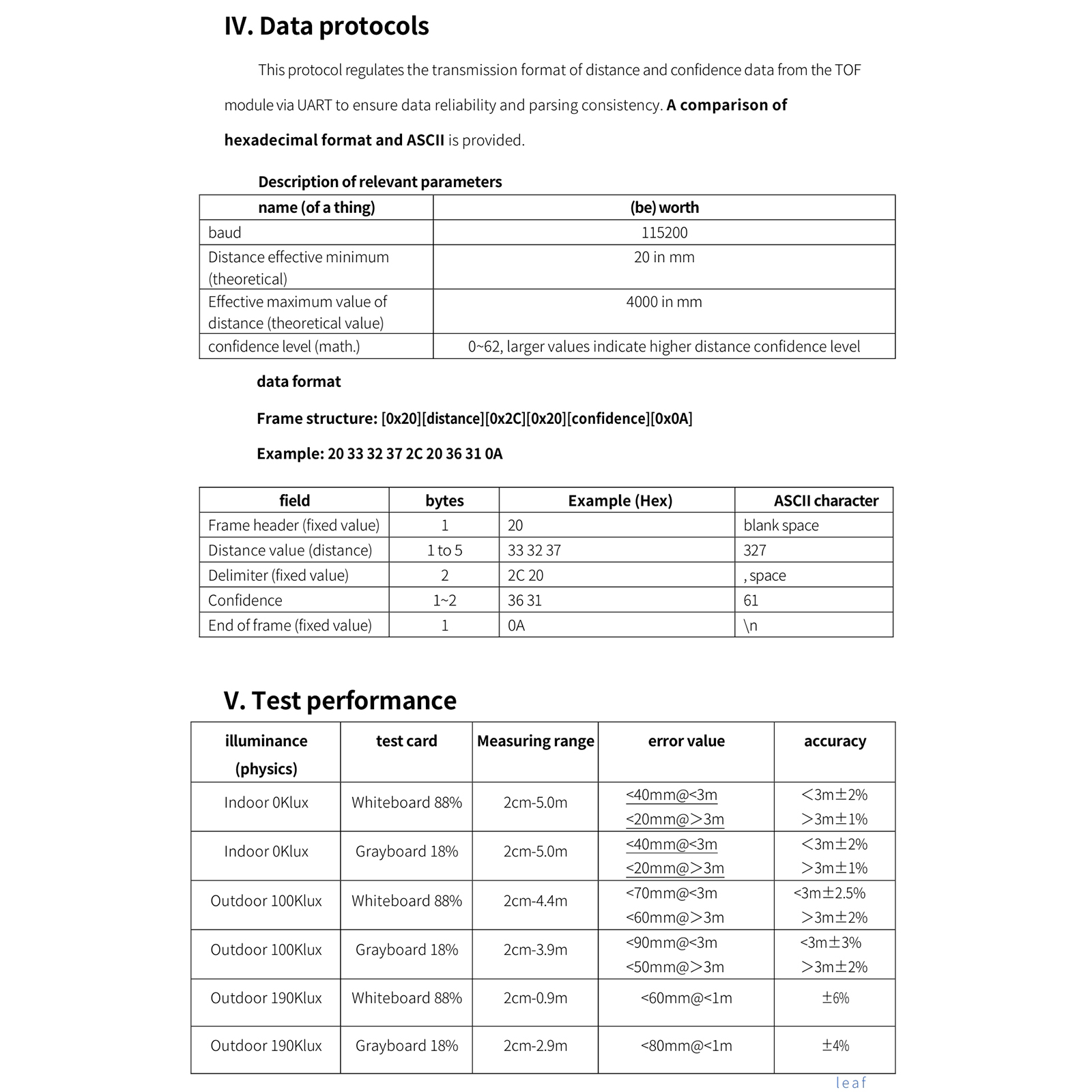

7. User-friendly Interface : Featuring a UART interface with a baud rate of 115200, it ensures reliable and convenient communication with other devices, simplifying integration and data transmission in various systems.

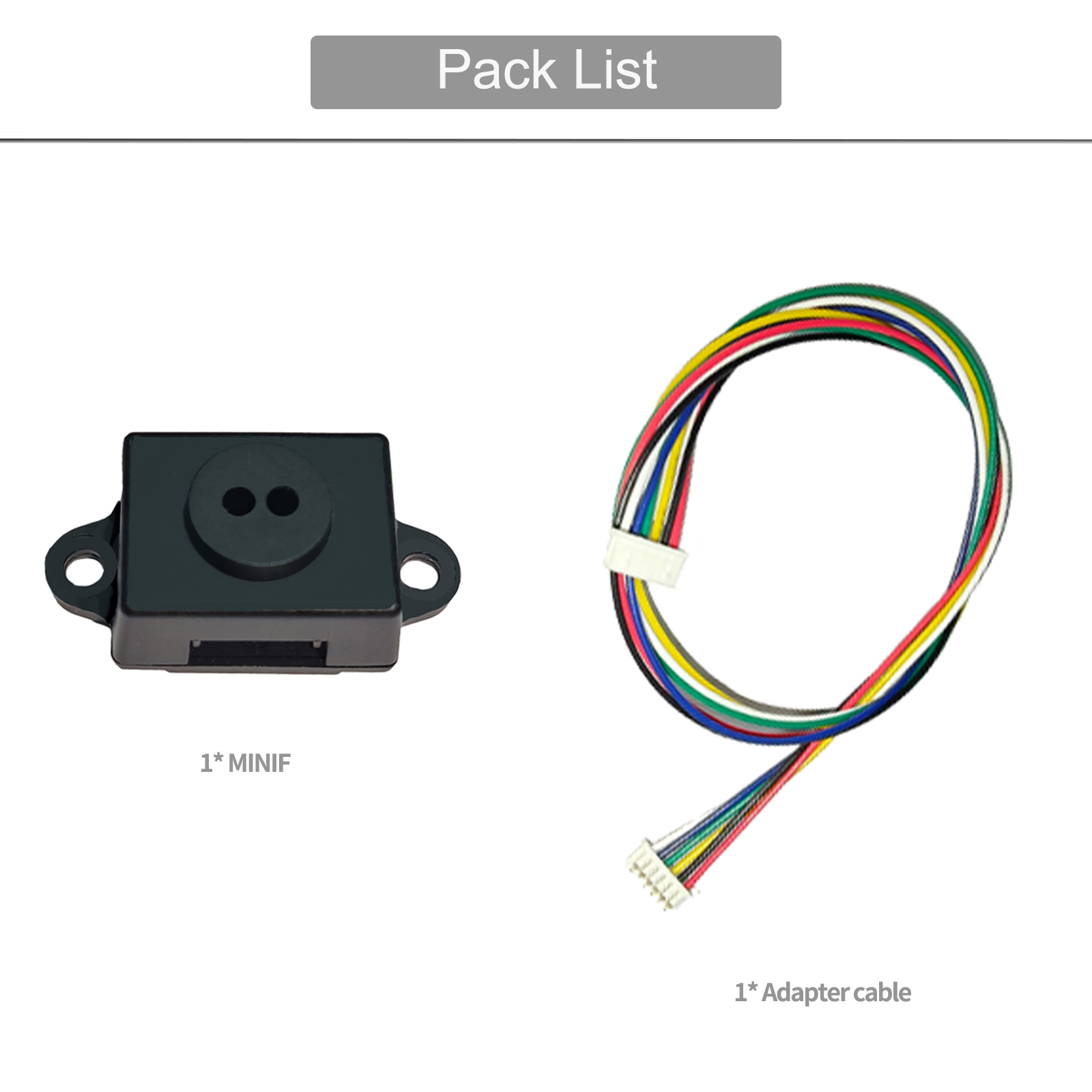

Shipping List

Applications

Perfect for existence detection, auxiliary focusing, height detection, workstation detection, robot obstacle avoidance, and assembly line counting, it provides efficient and accurate distance measurement solutions for different industrial scenarios.

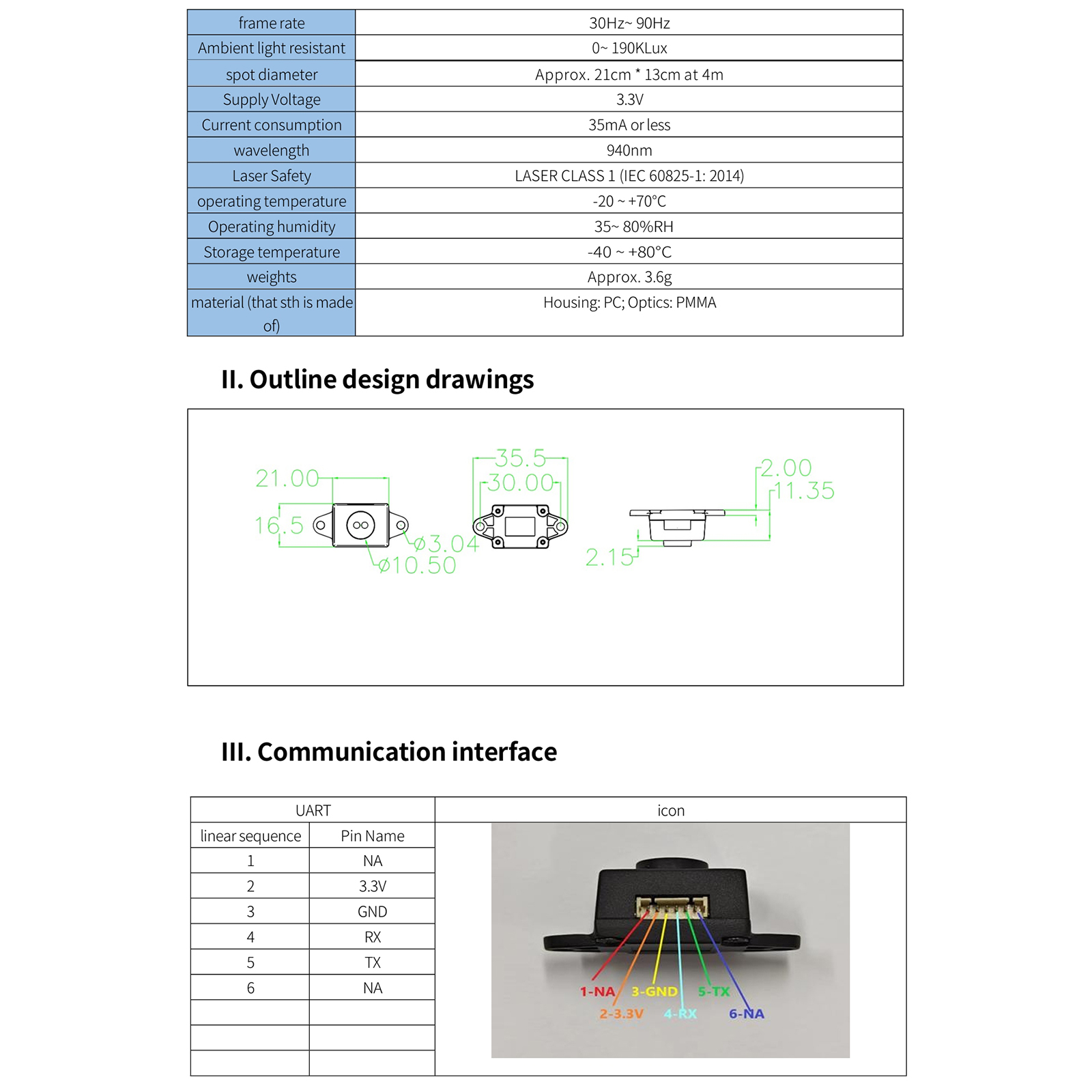

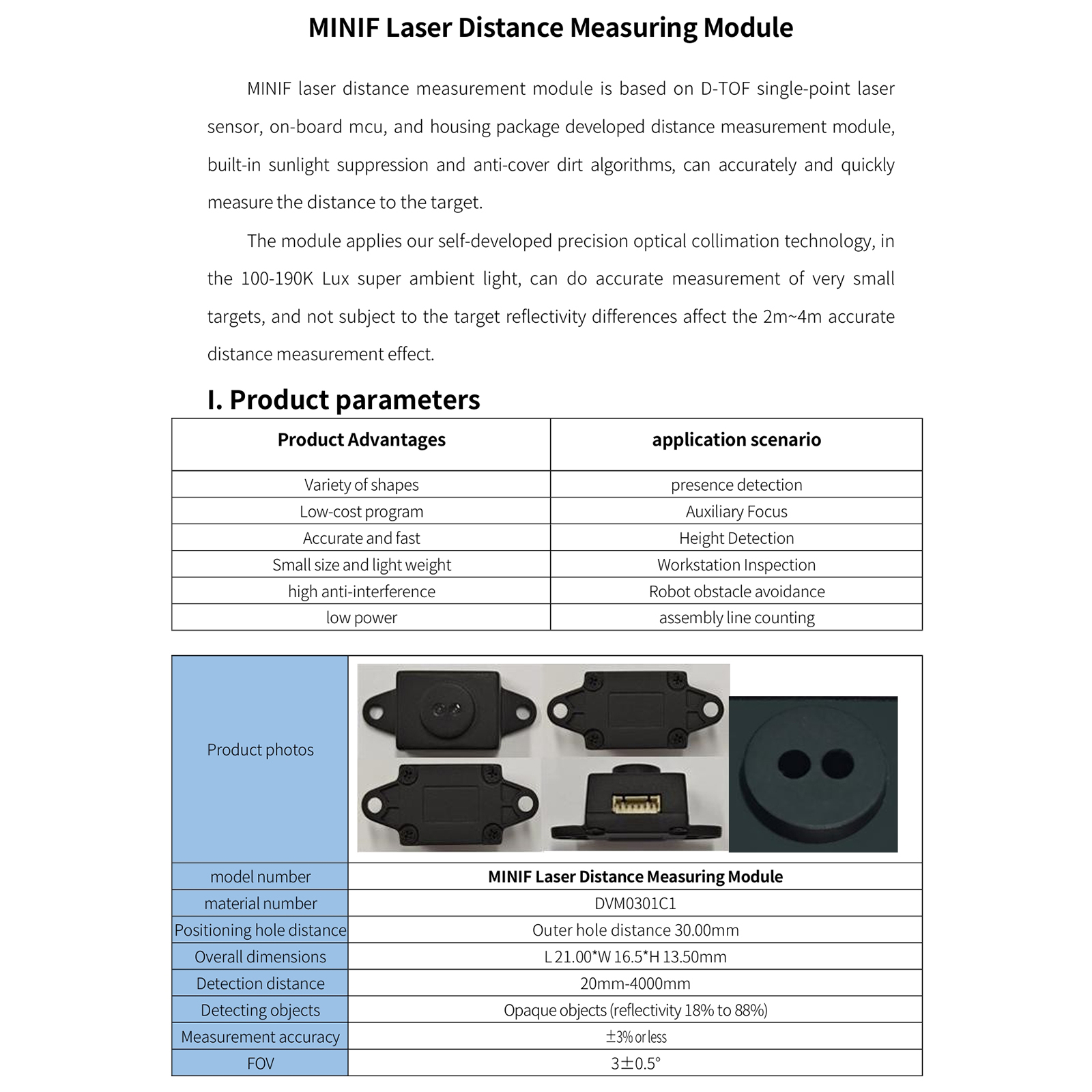

Specification

Detailed Descriptions
